GP1 SERIES "AP" ADVANCED PRINTER RETAIL SCALE


  GP1 SERIES "AP" ADVANCED PRINTER RETAIL SCALE

INFORMATION
  • Available upon request
  • Approval:

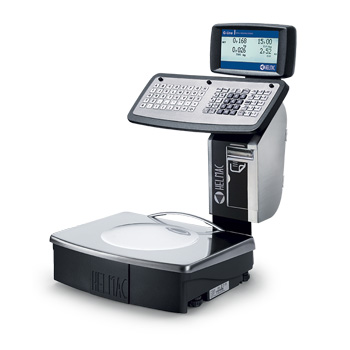

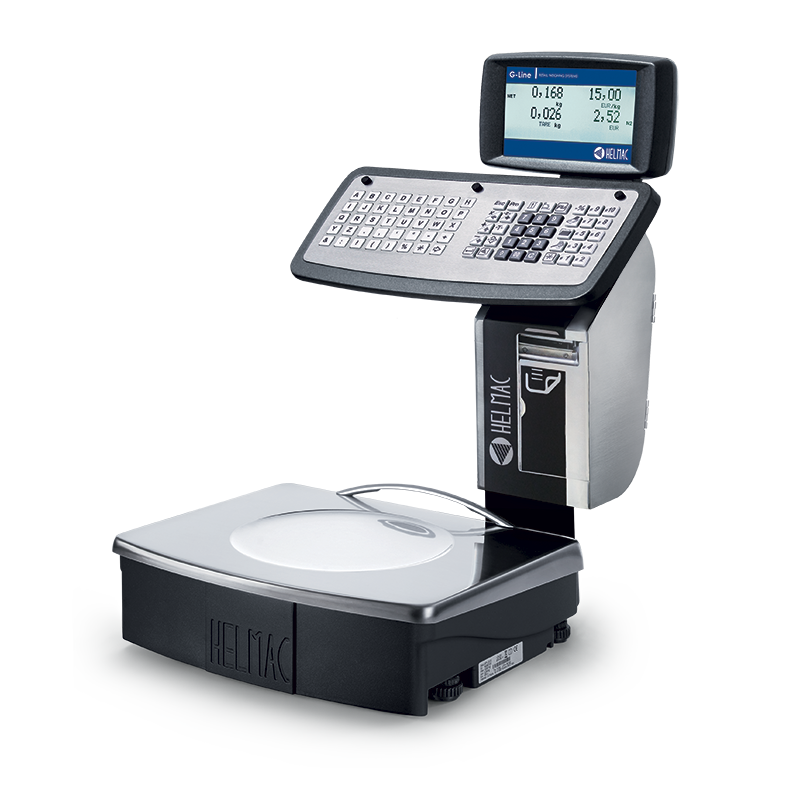

Scales for shop and supermarkets use, with high performance. Fitted with printer / labeller with the winder printing and high speed printing. The new design ensures completely freedom on the weighing surface, facilitating the work of those who use it.

MAIN FEATURES

  • Dual alphanumeric backlit white LCD display, both on operator side and client side.
  • Mechanical and waterproof keyboard, with 80 keys of which 40 PLU's with direct access (80 with dual access) and 40 functional keys.
  • Thermal printer/labeller (usable with thermal paper). 8 dots/mm resolution.
    Print width up to 55 mm.
    Paper roll width of up to 63 mm, external diameter of 110 mm.

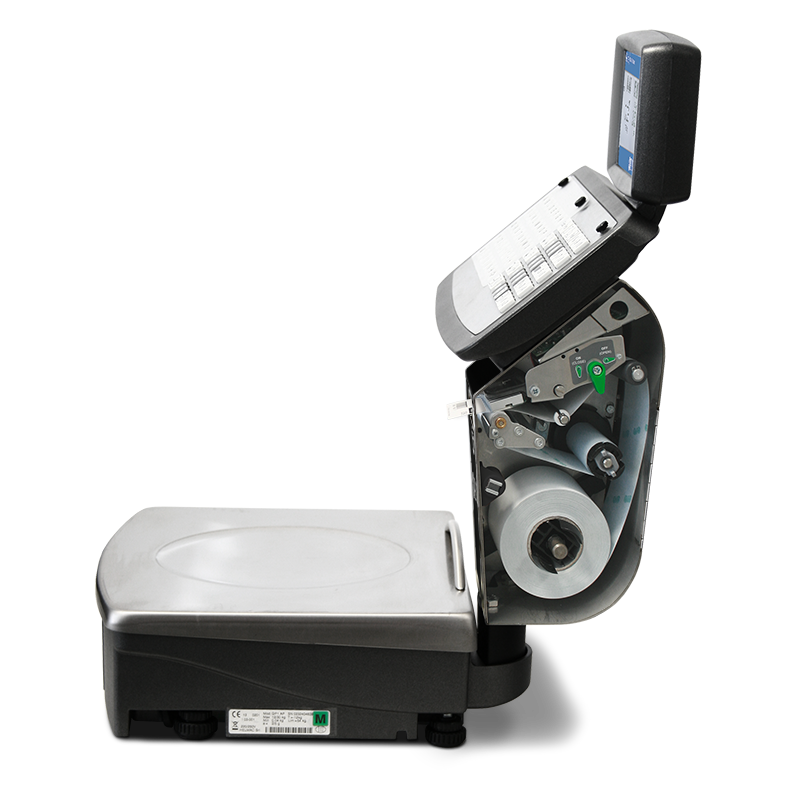

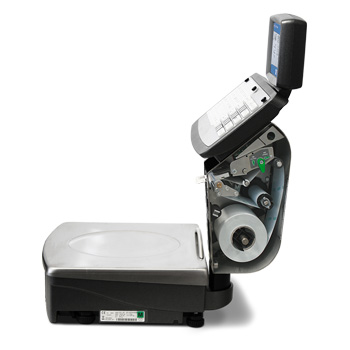

  • The printing unit is easily accessible for maintenance and for the roll change.
  • DIE-CAST ALUMINIUM base. Stainless steel and polymer structure.

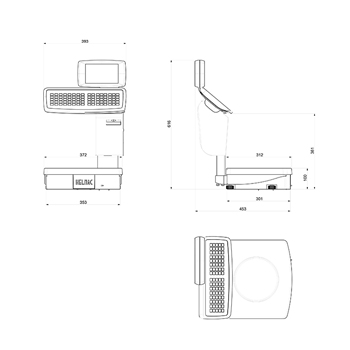

  • Stainless steel plate, 375x315mm (LxW) size.
  • 230Vac power supply, complete with built-in rechargeable 24Vdc buffer batteries.

FUNCTIONS

  • Selectable operating modes: ticket, pricing-labelling, single article or self-service.
  • "Quick labelling" function which allows to print labels, on adhesive paper, between a ticket and the other.
  • 20 operators.
  • Database of 3000 PLU’s, 80 with direct access.
  • 50 PLU groups.
  • 8 preset tares and memory for 20 active tares selectable by the operators.
  • 600 ingredient lists.
  • 20 product traceablities.
  • 4 VAT rates with a strips function.
  • 10 advertisement messages.
  • Queue-system.
  • 8 payment modes.
  • 3 programmable password levels.
  • Storage and reopening of daily tickets.
  • Cancellations, discounts, special offers, hourly sales reports, customer management.
  • Totals for operators, PLUs, article groups, VAT rates, and short and long term payment types.
  • PLU priority work mode.
  • Prints logos, EAN13 and EAN8 bar codes, price tags with the total, lot, ice.
  • Management of logos and firmware with the HLL (Helmac Label Loader) software downloadable from the web site.

I/O SECTIONS

  • 2 RS232 interfaces for connection to: PC, modem, scanner, cash register.
  • RS485 interface for connection with up to 16 GP series’ scales in a network.
  • Ethernet connection (optional).
DOWNLOAD
Retail scales: AVAILABLE VERSIONS
 CodeDescription
789110 GP1AP scale, 12/30 kg capacity, 2/5 g division, with stainless steel structure and 375x315 mm plate, dual backlit LCD display on column, 80-key mechanical keyboard and thermal printer/labeller.
Retail scales: COMMUNICATION INTERFACES (to be specified when ordering the scale - installation à l'usine )
 CodeDescription
810050 Ethernet interface kit for connecting the scales to the PC.
810063 Ethernet-USB interface kit for connecting the scales to the PC and in a network.
810180 Ethernet WIFI module to create a scale network and connect to PC.
810172 Ethernet WIFI module fitted with USB port, to create a scale network and connect to PC (max. 4 scales without access point, up to 8 scales with access point).
810065 Access Point WI-FI for scales network. Access Point WI-FI for scales network.
810061 WiFi antenna, 20cm long, to increase the strength of the communication signal between the scales.
842527 Micro Sd for Ethernet Board
COMMUNICATION INTERFACES OPZIONALI (customer charge installation)
 CodeDescription
810055 Ethernet-USB interface kit for connecting the scales to the PC and in a network.
810050 Ethernet interface kit for connecting the scales to the PC.
810180 Ethernet WIFI module to create a scale network and connect to PC.
810072 Ethernet interface kit for connecting the scales to the PC.
Retail scales: OPTIONS (to be specified when ordering the scale)
 CodeDescription
810000 Stainless steel bowl-shaped plate with discharge outlet, dimensions 330 x 385 mm, height 45 mm, for scales with column.
700500 Painted metal cash drawer for coins and bills, size: 405x355x90mm, fitted with 4 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
700506 Stainless steel cash drawer for coins and bills, size: 425x410x110mm, fitted with 6 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
810170 Opening of cash register drawer.
810231 Custom-made labels (logo insertion, setting of label, header, closing messages, etc). Note: the customisation is possible after an analysis of the Helmac technical staff.
847243 Power supply 24V, 3A per utilizzo della bilancia anche senza batterie (da verificare in base alla tipologia dell'etichetta)
Retail scales: EXPENDABLE MATERIALS
 CodeDescription
880049 20 rolls of thermal paper, 60mm x 130m size, 109mm outer diameter, 40mm diameter of central hole.
880050 20 rolls of adhesive thermal paper, 59mm x 57m size, 109mm outer diameter, 40mm diameter of central hole.
880034 24 rolls of 1000 white labels, 58x53mm size, 40mm diameter of central hole.
880035 32 rolls of 1000 white labels, 58x43mm size, 40mm diameter of central hole.
880036 24 rolls of 900 white labels, 58x60mm size, 40mm diameter of central hole.
880037 24 rolls of 750 white labels, 58x74mm size, 40mm diameter of central hole.
Retail scales: CABLES
 CodeDescription
806002 Ethernet shielded cable 3 m long for connection between scales.
806005 Ethernet shielded cable 5 m long for connection between scales.
821235 Cable 2,5m long for connecting the scale to the PC.
841239 USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
Retail scales: ACCESSORIES
 CodeDescription
880143 Plexiglas protection for scale plate.

All the specifications and images can be subject to variations and upgrades without prior notice.
