GP4 LX SERIES PRICE COMPUTING BENCH SCALES

	GP4 LX SERIES PRICE COMPUTING BENCH SCALES

PRINTING FEATURES

Print dimensions
Roll width (mm)
Printing width (mm)
Diameter (mm)
Continuous roll
63
56
120
Integrated printer
63
56
120
External printer
118
108
203

HLL labeling software

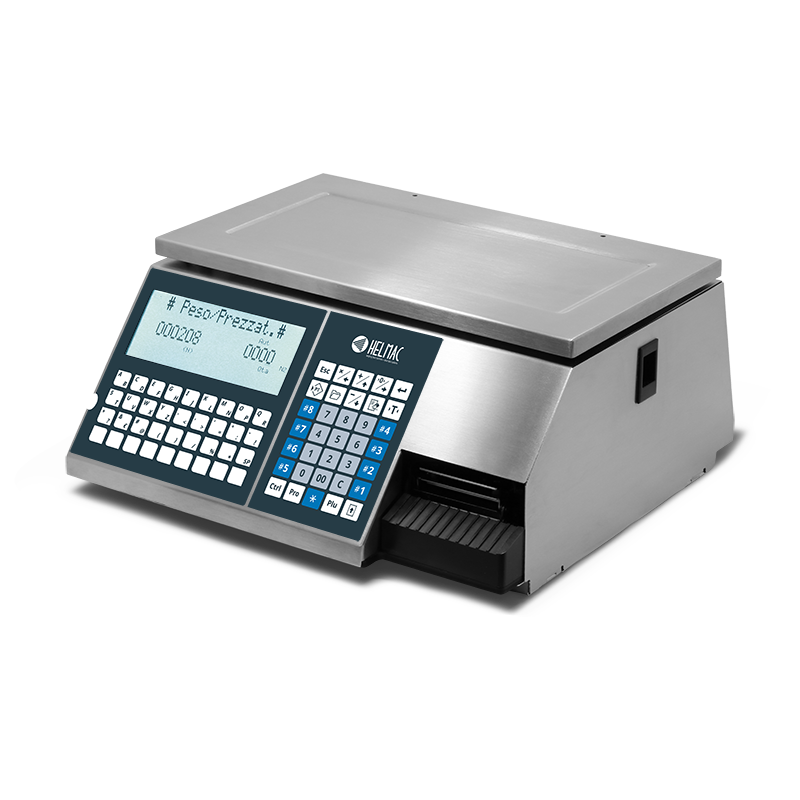

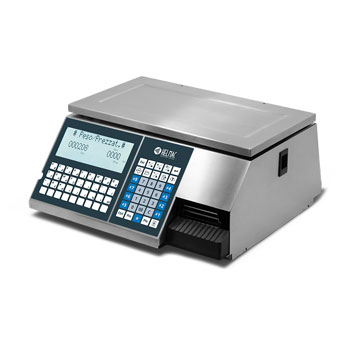

Bench price computing scales with stainless steel structure and double waterproof keyboard. Suitable for labelling pre-packaged products.

FEATURES

LCD alphanumeric double display (operator and customer side), white backlit.
Double waterproof keyboard consisting of 36 multi-function membrane keys easily legible thanks to the special side pocket and 35 mechanical keys protected with adhesive screen printing. 8 operators.
Thermal labeller with 8dots/mm resolution, ideal for labelling pre-packaged products.
Print width up to 56mm.
Max. roll width 63mm, external diameter 120mm (external diameter 203.2 mm in EVO version with external labeller).

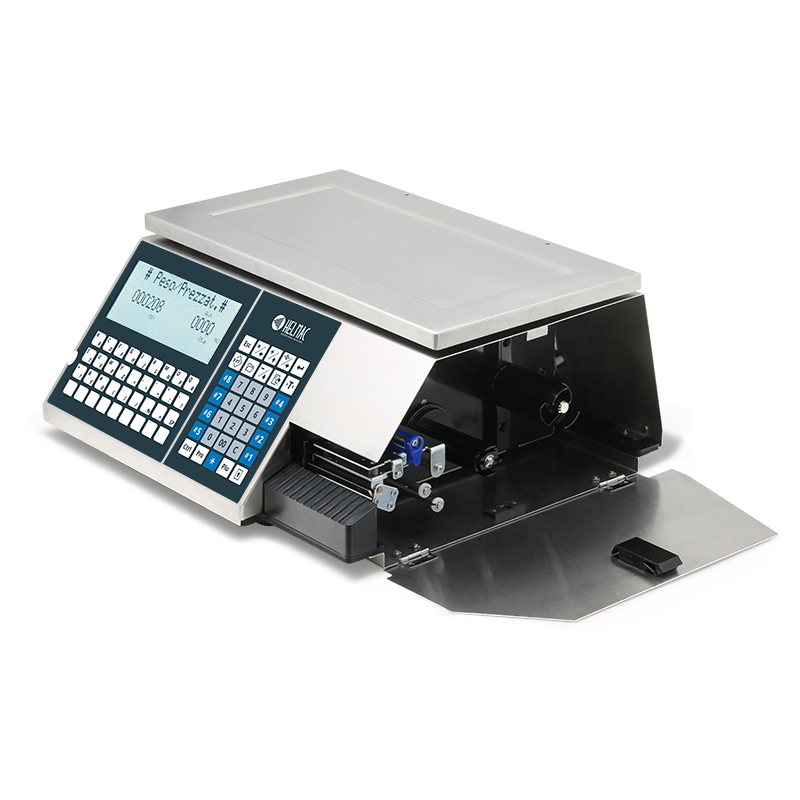

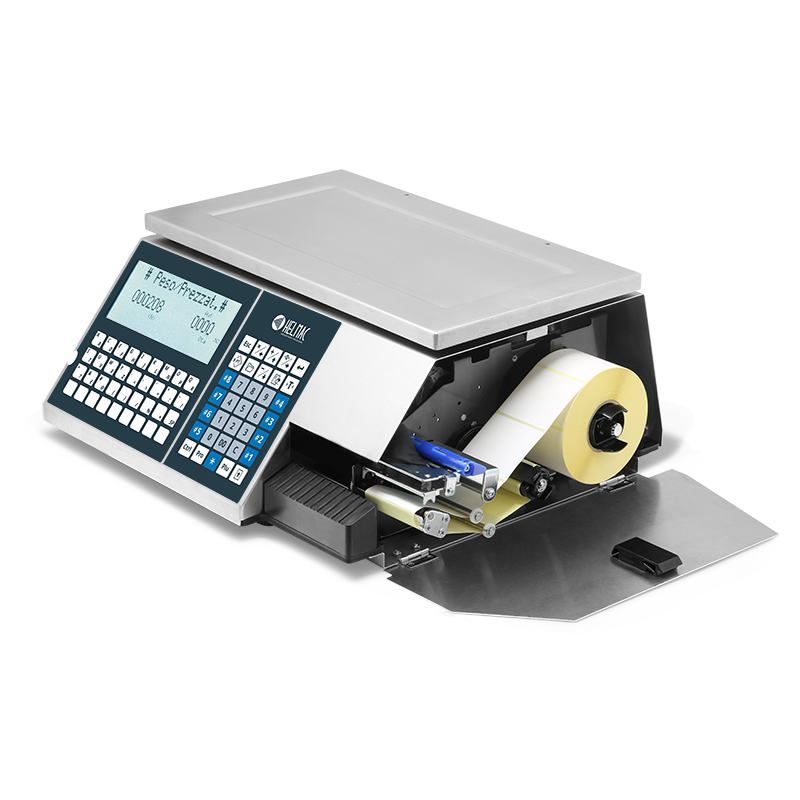

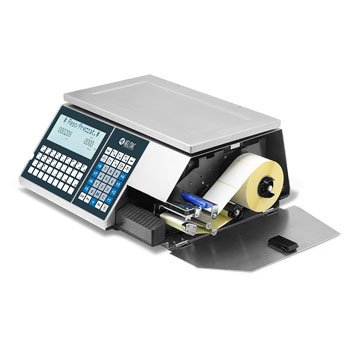

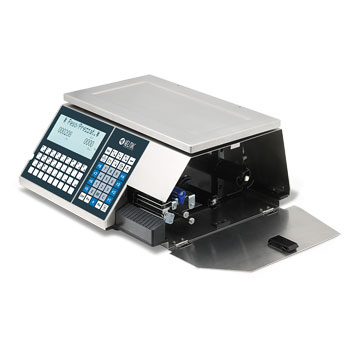

Easy roll replacement, by means of a removable door and an extractable trolley on guides to facilitate paper change.
Stainless steel body, 420x390x180mm (WxWxH).
410x230mm (WxW) stainless steel plate.
230Vac power supply.
Standard Ethernet port (optional USB connector).
OIML R76 approved.

FUNCTIONS

Selectable operating mode: by receipt, price weight for labelling, single item or self-service.
8 with direct keys 20 totals.
Archive 7000 PLU, 72 direct recall.
50 PLU groups.
5 active tares for operators.
999 ingredient lists up to 420 digits.
99 product traceability.
4 VAT rates, with separation function.
10 advertising messages.
Queue eliminator.
8 types of payment.
3 programmable password levels.
Storage and reopening of daily receipts.
Starters, discounts, special offers, hourly sales reports, customer management.
Total operators, PLUs, product groups, VAT rates and short and long term payment types.
PLU priority working mode.
Logo printing, EAN13 and EAN8 barcodes, dynamic QR Codes, total, lot, glazing.
Logos management and firmware maintenance with HLL (Helmac Label Loader) software, downloadable from the site.

DOWNLOAD

GP-GPE_01_14.02_EN-FR-DE-ES-IT.pdf	Last Firmware Revision News
TECH_DRAWING_GP4_LX.pdf

Available versions

	Code	Description
	GP4LX1230-2	GP4 LX scale, 12/30 kg capacity, 2/5 g division, with stainless steel structure and 410x230mm plate, dual backlit LCD display, keyboard with 35 mechanical keys, 36 PLU membrane keys and thermal labeller.

Calibration options

	Code	Description
	881018	Version 3/6 kg, division 1/2g.

Kit for EVO version

	Code	Description

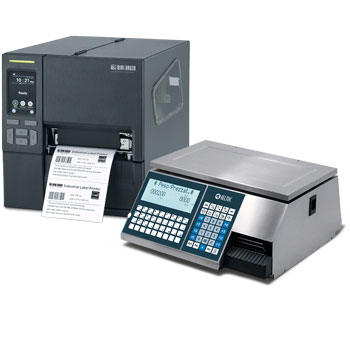

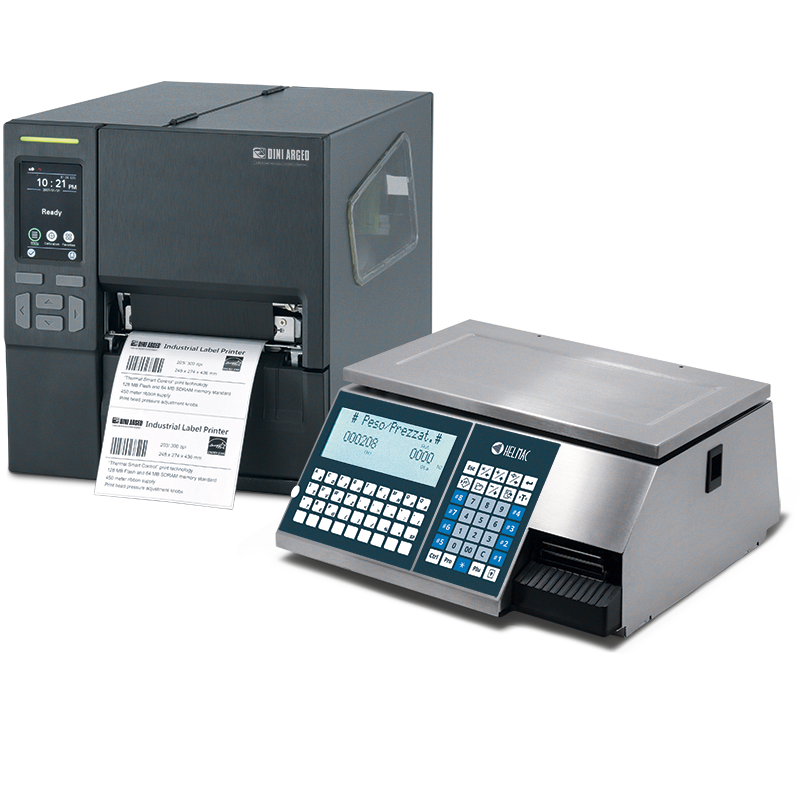

	LP542TE	Thermal transfer or direct thermal labelling machine with standard peeler. Maximum printing size 25400 x 108 mm. Maximum roll Ø 127 mm and width up to 112 mm. Label roll and ribbon not included.
	880155	Connection kit to external labelling machine

Price computing scales: Communication interfaces (to be specified when ordering the scale)

	Code	Description
	810086	WIFI module
	810065	Access Point WI-FI for scales network.
	842527	Micro Sd for image management via Ethernet (and taxation if applicable)
	810087	USB connector.

Counting scales: Cash drawer

	Code	Description
	700500	Painted metal cash drawer for coins and bills, size: 405x355x90mm, fitted with 4 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.Please note: Requires code 810252.
	700506	Stainless steel cash drawer for coins and bills, size: 425x410x110mm, fitted with 6 compartments for bills and 8 compartments for coins; electronically managed through the keyboard. Please note: Requires code 810252.
	810253	Opening of cash register drawer.

Counting scales: Additional platform

	Code	Description
	810171	Predisposition for connection at external platform
	14CAVODINISH	Connection cable with platform series PB, PBI.

NOTE: they can be connected to bench scales, floor scales and overhead scales. Contact the sales department for more information.

Counting scales: Load plates

	Code	Description
	810010	Stainless steel bowl-shaped plate ("svizzera" type), dimensions 310 x 410 mm, height 50 mm.

Price computing scales: Options (to be specified when ordering the scale)

	Code	Description
	810231	Custom-made labels (logo insertion, setting of label, header, closing messages, etc). Note: the customisation is possible after an analysis of the Helmac technical staff.
	847243	Power supply 24V, 3A for use of the scale even without batteries (to be checked according to the type of label)

Price computing scales: Cables

	Code	Description
	806002	Ethernet shielded cable 3 m long for connection between scales/network.
	806005	Ethernet shielded cable 5 m long for connection between scales/network.
	821235	Cable 2,5m long for connecting the scale to the PC.
	841239	USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
	880155	Connection kit to external labelling machine

Price computing scales: Expandable materials

	Code	Description
	880049	20 rolls of thermal paper, 60mm x 130m size, 109mm outer diameter, 40mm diameter of central hole.
	880050	20 rolls of adhesive thermal paper, 59mm x 57m size, 109mm outer diameter, 40mm diameter of central hole.
	880034	24 rolls of 1000 white labels, 58x53mm size, 40mm diameter of central hole.
	880035	32 rolls of 1000 white labels, 58x43mm size, 40mm diameter of central hole.
	880036	24 rolls of 900 white labels, 58x60mm size, 40mm diameter of central hole.
	880037	24 rolls of 750 white labels, 58x74mm size, 40mm diameter of central hole.
	880080	24 rolls of 600 white labels, 58x92mm size, 40mm diameter of central hole, 107mm external diameter.

Counting scales: Accessories

	Code	Description
	880210	Laser barcode scanner
	880207	Barcode scanner 2d

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
