Retail Scales





NEW GPE SERIES "LT" ELECTRONIC RETAIL SCALES FOR ITINERANT SALES WITH MECHANICAL KEYBOARD


  NEW GPE SERIES "LT" ELECTRONIC RETAIL SCALES FOR ITINERANT SALES WITH MECHANICAL KEYBOARD

INFORMATION
  • Available upon request
  • Approval:

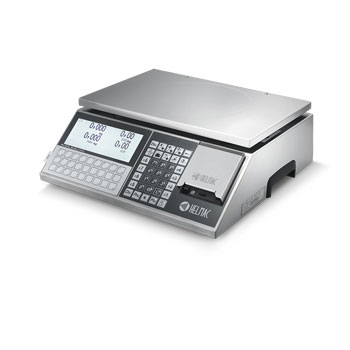

Sturdy electronic retail scales, completely made in brushed stainless steel, battery operation, and perfect for itinerant sales. The new design of the scale and the plate ensures the maximum weighing accuracy and impact protection.

FEATURES

  • Dual alphanumeric backlit white LCD display, operator and client side. The backlight function can be removed.

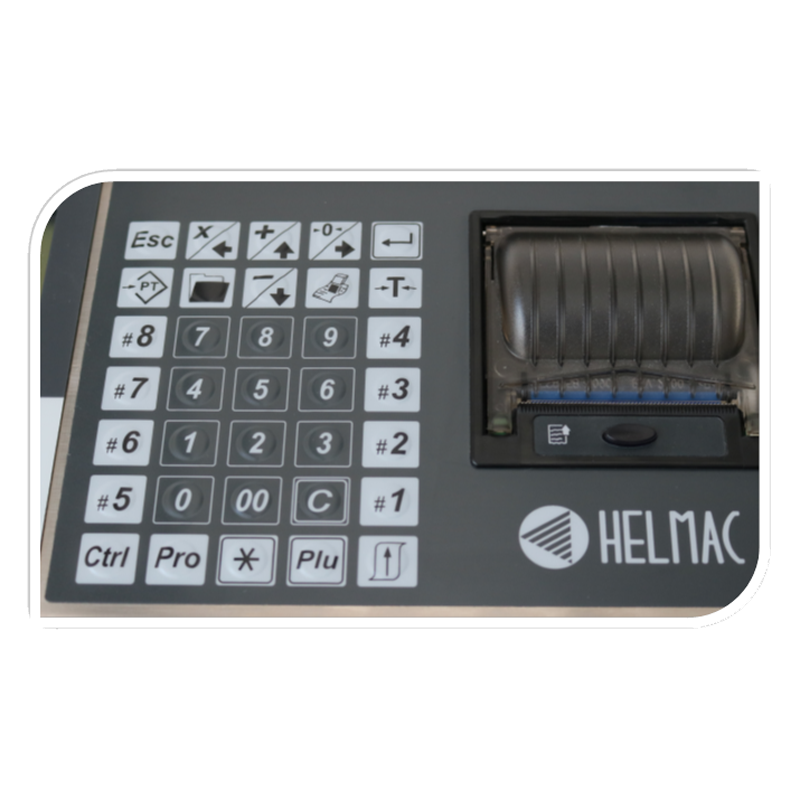

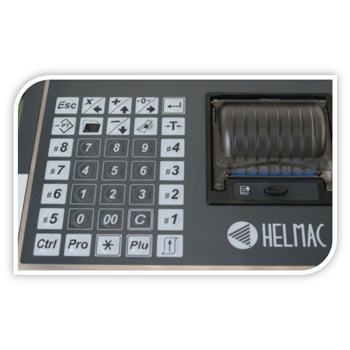

  • Double waterproof keyboard consists of 27 membrane keys plu / functions easily customizable thanks to the special side pocket and 35 mechanics with adhesive protection. 8 operator
  • Thermal printer speed of 80mm/sec for normal thermal paper or for Linerless adhesive type with paper 57mm wide, and outer diameter max. 50mm.
    Print width of up to 48mm.
  • System for easily loading the paper. Print function of the logo.

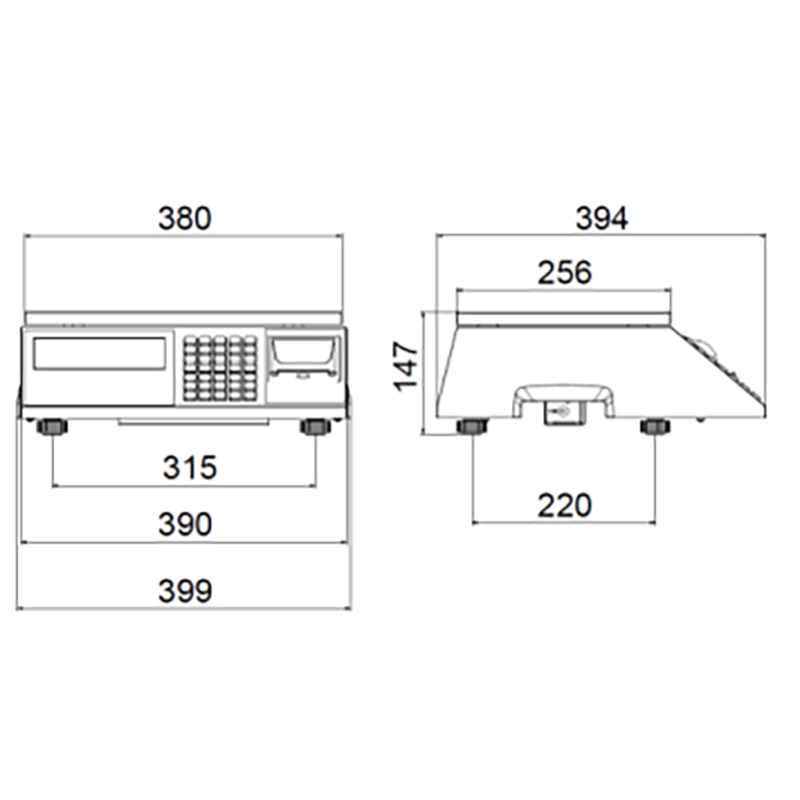

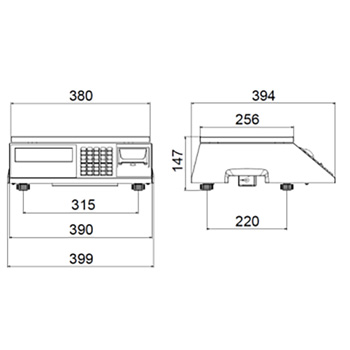

  • Completely stainless steel body, dimensions 390x386x140mm (LxWxH).
  • Stainless steel plate, 360x235mm (LxW) size.
  • 230Vac power supply with long-lasting built-in rechargeable battery.

FUNCTIONS

  • Database of 3000 PLU's, 48 with direct access.
  • 50 PLU groups.
  • 600 ingredient lists.
  • 4 VAT rates.
  • 10 advertisement messages.
  • Queue-system.
  • 8 payment modes.
  • 2 kinds of short and long term totals.
  • 4/8 operators.
  • 3 programmable password levels.
  • Operation mode: PLU priority, single item, multi-operator tickets.
  • Weighing tare, operator tare, PLU tare, pre-stored and configurable tare.
  • Reopening of the last operator ticket, discounts, rebates, cash management, customer management.

I/O SECTIONS

  • 2 RS232 interfaces for connection to PC, modem, scanner, Helmac cash register.
  • RS485 interface for connection with up to 4 scales in a local network.
DOWNLOAD
 CodeDescription
754620 GPELT scale, 15 kg capacity, 5g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, new keyboard membrane/mechanical 62 keys and thermal printer.
754520 GPELT scale, 6/15 kg capacity, 2/5g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, new keyboard membrane/mechanical 62 keys and thermal printer.
754320 GPELT scale, 15/30 kg capacity, 5g/10g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, new keyboard membrane/mechanical 62 keys and thermal printer.
754120 GPELT scale, 12/30 kg capacity, 2g/5g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, new keyboard membrane/mechanical 62 keys and thermal printer.
Electronic retail scales for itinerant sales: COMMUNICATION INTERFACES (to be specified when ordering the scale)
 CodeDescription
810050 Ethernet interface kit for connecting the scales to the PC.
810057 Ethernet-USB interface kit for connecting the scales to the PC and in a network.
810181 Ethernet WIFI module to create a scale network and connect to PC.
810173 Ethernet WIFI module fitted with USB port, to create a scale network and connect to PC (max. 5 scales without access point, up to 16 scales with access point).
842527 Micro Sd for Ethernet Board
810061 WiFi antenna, 20cm long, to increase the strength of the communication signal between the scales.
Electronic retail scales for itinerant sales: OPTIONS (to be specified when ordering the scale)
 CodeDescription
810010 Stainless steel bowl-shaped plate ("svizzera" type), dimensions 310 x 410 mm, height 50 mm.
810117 1,5 m connecting cable for 12/24Vdc power supply for itinerant sales.
700500 Painted metal cash drawer for coins and bills, size: 405x355x90mm, fitted with 4 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
700506 Stainless steel cash drawer for coins and bills, size: 425x410x110mm, fitted with 6 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
810170 Opening of cash register drawer.
810232 Custom-made header ticket complete with logos. Note: the customisation is possible after an analysis of the Helmac technical staff.
881014 Version 3/6 kg, division 1/2g
847243 Power supply 24V, 3A per utilizzo della bilancia anche senza batterie (da verificare in base alla tipologia dell'etichetta)

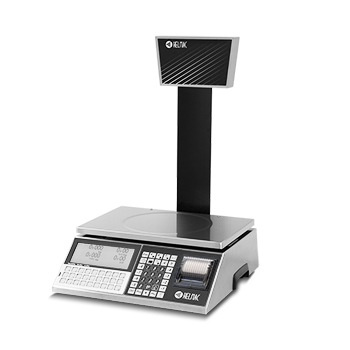

810178 Column Display GPEX/LT
Electronic retail scales for itinerant sales: CABLES
 CodeDescription
806002 Ethernet shielded cable 3 m long for connection between scales.
806005 Ethernet shielded cable 5 m long for connection between scales.
821235 Cable 2,5m long for connecting the scale to the PC.
841239 USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
Electronic retail scales for itinerant sales: ACCESSORIES
 CodeDescription
810145 Cover for the protection of the printer against water, dust and residues of weighed products.
810146 Package of 5 covers for the protection of the printer against water, dust and residues of weighed products.
881007 Transport wooden case for GPEL and GPELT scale, fitted with hinges and a locking hook. Dimensions: 505x485mm. Height: 218mm.
Electronic retail scales for itinerant sales: EXPENDABLE MATERIALS
 CodeDescription
880043 100 rolls of thermal paper, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.
880042 72 rolls of Linerless thermal sticker paper, 55mm x 21m size, 49mm outer diameter, 13mm diameter central hole.

All the specifications and images can be subject to variations and upgrades without prior notice.
