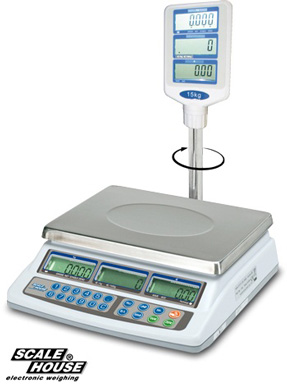

ASBP SERIES PRICE COMPUTING "RETAIL" SCALE

	ASBP SERIES PRICE COMPUTING "RETAIL" SCALE

Dual range price computing scales with column, for commercial use. Connectable to the printer, for amount totalisation function. 10 PLU memory.

TECHNICAL FEATURES

3 backlit LCD displays on keypad on operator side and 3 backlit LCD displays on revolving column on customer side, with digits 20 mm high, for simultaneous indication of weight, price and amount.
Membrane waterproof numeric and functional keypad with 20 keys and acoustic feedback.
Stainless steel plate, 230 x 300mm size.
Level and adjustable feet.
Built-in rechargeable battery (about 70 h battery life) and 230 Vac power adapter.
RS232/C port for connection to printer.
Overall height from ground with indicator and column: 530mm.
Packaging: 550 x 380 x 235mm size - approximate weight of 6kg.
Master Pack: 2 x (550 x 380 x 235) mm size - 2 x approximate weight of 6 kg.
Upon request:
- ACCREDIA calibration with issuing of relative certificate;
- 3000e + 3000e dual range CE-M approval.

FUNCTIONS

Price computing:
- change of unit price: €/kg - €/100g;
- entry of unit price;
- amount totalisation (with optional printer);
- calculation of the change;
- 10 PLU memories;
zeroing;
Zero tracking;
Semi-automatic tare;
Digital calibration;
Auto switch-off;
Backlight command;
Low battery warning.

DOWNLOAD

ASB_01.12_13.03_DE_U.pdf	ASB_1.126_13.03_EN_DE_FR_IT.pdf
ASB_01.12_13.03_EN_U.pdf	ASB-ASG-NPS_stampe_DE_EN_ES_FR_IT.pdf
ASB_01.12_13.03_FR_U.pdf	Scalehouse_Scales_CE_14.pdf
ASB_01.12_13.03_IT_U.pdf

Available versions

Code	Max (kg)	d (g)	2R (g)*
ASBP6	3/6	1/2	1/2
ASBP15	6/15	2/5	2/5
ASBP30	15/30	5/10	5/10

(*) CE-M divisions are obtainable only with the relative options.
NOTE: ACCREDIA calibration certificate available upon request.

Options only available at time of scale's order

	Code	Description
	ECEM2	CE-M single platform legal for trade multi range approval.
	OBTPRSH	ABS thermal printer for Scale House products (to be combined with specific cable for each scale). 58 mm paper width; 50 mm roll diameter; power supply through built-in 110-240 Vac power adapter.

Spare parts

	Code	Description
	SHAL14	12V 500mA power supplier (EU).
	14DFWBA	Lead battery, 6V 4.5Ah. ATTENTION: for the purchase of the entire INSTAPLUGBK extractable rechargeable battery please refer directly to the TPWLK, TPWP or TPWTS pallet truck data sheet.
	15ASBK	Keyboard overlay.
	15ASBP	Stainless steel weighing plate.
	15ASBU	Plastic underplate.
	15ASBF	Adjustable foot.
	15ASBC	Moulded protective covers in transparent plastic.
	15ASBCS	Column support base.

Pdf product page All the specifications and images can be subject to variations and upgrades without prior notice.
