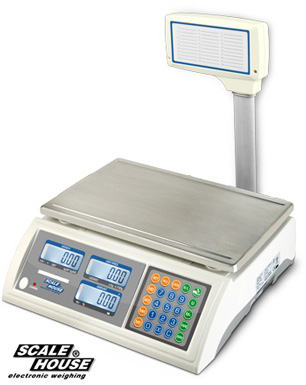

ASGP SERIES PRICE COMPUTING "RETAIL" SCALE


  ASGP SERIES PRICE COMPUTING "RETAIL" SCALE







Dual interval price computing scales with column, for commercial use. Connectable to the printer, for amount totalisation function. 105 PLU memory (5 from direct keys).

TECHNICAL FEATURES

  • 3 backlit LCD displays on keypad on operator side and 3 LCD displays on column on customer side, with digits 20 mm high, for simultaneous indication of weight, price and amount.
  • Membrane waterproof numeric and functional keypad with 20 keys and acoustic feedback.
  • Stainless steel plate, 240 x 370 mm size.
  • Level and adjustable feet.
  • Built-in rechargeable battery (about 70h battery life) and 230 Vac power adapter.
  • RS232/C port for connection to printer.
  • Packaging: 410 x 375 x 180 mm size - approximate weight of 5,1 kg.
  • Master Pack: 2 x (410 x 375 x 180) mm size - 2 x approximate weight of 5,1 kg.
  • Upon request:
    - ACCREDIA calibration with issuing of relative certificate;
    - 3000e + 3000e dual interval CE-M approval.

FUNCTIONS

  • Price computing:
    - change of unit price: €/kg - €/100g;
    - entry of unit price;
    - amount totalisation (with optional printer);
    - calculation of the change;
    - 105 PLU memories (5 from direct keys);
  • Zeroing;
  • Zero tracking;
  • Semi-automatic tare;
  • Digital calibration;
  • Auto switch-off;
  • Backlight command;
  • Low battery warning.
DOWNLOAD
Available versions

Code
Max
(kg)
d
(g)

2R (g)*
ASGP156/152/52/5
ASGP3015/305/105/10
(*) CE-M divisions are obtainable only with the relative options.
NOTE: ACCREDIA calibration certificate available upon request.
Options only available at time of scale's order
 CodeDescription
ECEMI2 CE-M 3000e approval
OBTPRSH ABS thermal printer for Scale House products (to be combined with specific cable for each scale). 58 mm paper width; 50 mm roll diameter; power supply through built-in 110-240 Vac power adapter.

All the specifications and images can be subject to variations and upgrades without prior notice.
