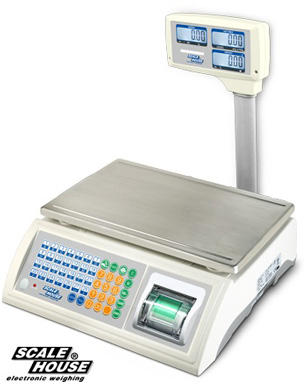

ASGPP SERIES PRICE COMPUTING "RETAIL" SCALE

	ASGPP SERIES PRICE COMPUTING "RETAIL" SCALE

Dual interval price computing scales fitted with column and thermal printer, for commercial use. Amount totalisation function. 127 PLU memory (28 from direct keys).

TECHNICAL FEATURES

3 backlit LCD displays on column on operator side and 3 backlit LCD displays on column on customer side, with digits 20 mm high, for simultaneous indication of weight, price and amount.
Mechanical waterproof alphanumeric and functional keypad with 50 keys and acoustic feedback.
Stainless steel plate, 240 x 370 mm size.
Level and adjustable feet.
Built-in rechargeable battery (about 70 h battery life) and 230 Vac power adapter.
Fitted with built-in thermal printer: 70 mm/sec print speed, 8 dot/mm resolution, 384 dots per line, 58 mm paper width, 50 mm diameter roll.
Packaging: 410 x 375 x 180 mm size - approximate weight of 10 kg.
Master Pack: 2x(410 x 375 x 180) mm size - 2x approximate weight of 10 kg.
Upon request:
- ACCREDIA calibration with issuing of relative certificate;
- 3000e + 3000e dual interval CE-M approval.

FUNCTIONS

Price computing:
- change of unit price: €/kg - €/100g;
- entry of unit price;
- amount totalisation (with optional printer);
- calculation of the change;
- 127 PLU memories (28 from direct keys) each with 12 character alphanumeric description and unit price;
Management of one operator;
Zeroing;
Zero tracking;
Semi-automatic tare;
Auto switch-off;
Backlight command;
Low battery warning.

DOWNLOAD

ASB-ASG-NPS_stampe_DE_EN_ES_FR_IT.pdf

ASGPP_1.019_13.03_EN_DE_FR_IT.pdf

Available versions

Code	Max (kg)	d (g)	2R (g)*
ASGPP15	6/15	2/5	2/5
ASGPP30	15/30	5/10	5/10

(*) CE-M divisions are obtainable only with the relative options.

	Code	Description
	CT4	ISO 17025 calibration certificate from 6 to 60 kg. For precision and industrial scales, crane scales.

Options only available at time of scale's order

	Code	Description
	ECEMI2	CE-M 3000e approval
	ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.
	RPT57C	50 thermal paper rolls 30m long, 57mm wide. 12mm hole. 51mm external diameter.

Spare parts

	Code	Description
	SHAL14	12V 500mA power supplier (EU).
	14BA612	Lead battery, 6V 12Ah.
	15ASGPPO	Keyboard overlay.
	846106	STAINLESS STEEL loading plate.
	15PRT	Printer.
	15ASBF	Adjustable foot.
