LS12 "COLOR" WITH HIGH DEFINITION COLOR DISPLAY


  LS12 "COLOR" WITH HIGH DEFINITION COLOR DISPLAY

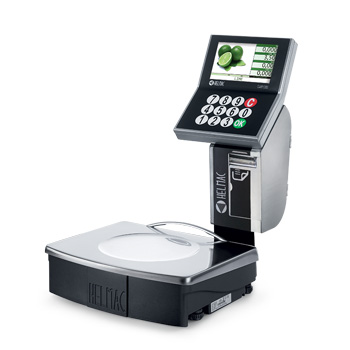

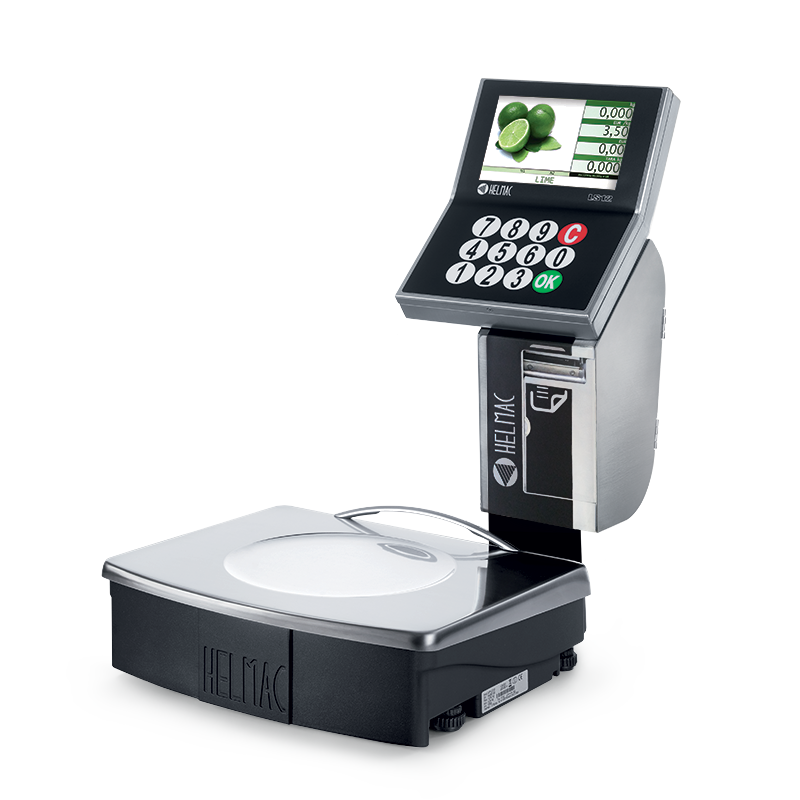

LS12 COLOR: Self Service scales, with printer / labeller, color display and DIE-CAST ALUMINIUM base



Available upon request



Self Service Scales for supermarkets use with high performance color display 7". Fitted with printer / labeller with the rewinder printing and high speed printing. The new design ensures completely freedom on the weighing surface, facilitating the work of those who use it.

MAIN FEATURES

  • Double TFT 7" color display .
  • Mechanical and waterproof keyboard, with 12 keys.
  • Thermal printer/labeller (usable with thermal paper). 8 dots/mm resolution.
    Print width up to 55 mm.
    Paper roll width of up to 63 mm, external diameter of 110 mm.
  • Extractable printer unit to make it easier to change the paper.
  • DIE-CAST ALUMINIUM base. Stainless steel and polymer structure.
  • Stainless steel plate, 375x315mm (LxW) size.
  • 230Vac power supply, complete with built-in rechargeable 24Vdc buffer batteries.

FUNCTIONS

  • Operating modes: self-service.
  • Database of 7000 PLU’s.
  • 50 PLU groups.
  • 8 preset tares and memory for 20 active tares selectable by the operators.
  • 999 ingredient lists.
  • 99 product traceablities.
  • 4 VAT rates with a strips function.
  • 10 advertisement messages.
  • Queue-system.
  • 8 payment modes.
  • 3 programmable password levels.
  • Easy software for images management included
  • PLU priority work mode.
  • Prints logos, EAN13 and EAN8 bar codes, price tags with the total, lot, ice.
  • Management of logos and firmware with the HLL (Helmac Label Loader) software downloadable from the web site.

I/O SECTIONS

  • 2 RS232 interfaces for connection to: PC, modem, scanner, cash register.
  • RS485 interface for connection with up to 16 GP series’ scales in a network.
  • Ethernet connection (optional).
DOWNLOAD
Retail scales: AVAILABLE VERSIONS
 CodeDescription
747130 GP1LS12 scale, 12/30 kg capacity, 2/5 g division, with stainless steel structure and 375x315 mm plate, backlit LCD display on column, 12 -key mechanical keyboard and thermal printer/labeller.
Retail scales: COMMUNICATION INTERFACES (to be specified when ordering the scale)
 CodeDescription
810050 Ethernet interface kit for connecting the scales to the PC.
810055 Ethernet-USB interface kit for connecting the scales to the PC and in a network.
810180 Ethernet WIFI module to create a scale network and connect to PC.
842527 Micro Sd for Ethernet Board
810172 Ethernet WIFI module fitted with USB port, to create a scale network and connect to PC (max. 4 scales without access point, up to 8 scales with access point).
810061 WiFi antenna, 20cm long, to increase the strength of the communication signal between the scales.
Retail scales: OPTIONS (to be specified when ordering the scale)
 CodeDescription
810010 Stainless steel bowl-shaped plate ("svizzera" type), dimensions 310 x 410 mm, height 50 mm.
700500 Painted metal cash drawer for coins and bills, size: 405x355x90mm, fitted with 4 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
700506 Stainless steel cash drawer for coins and bills, size: 425x410x110mm, fitted with 6 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
810170 Opening of cash register drawer.
810231 Custom-made labels (logo insertion, setting of label, header, closing messages, etc). Note: the customisation is possible after an analysis of the Helmac technical staff.
Retail scales: CABLES
 CodeDescription
806002 Ethernet shielded cable 3 m long for connection between scales.
806005 Ethernet shielded cable 5 m long for connection between scales.
821235 Cable 2,5m long for connecting the scale to the PC.
841239 USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
Retail scales: EXPENDABLE MATERIALS
 CodeDescription
880049 20 rolls of thermal paper, 60mm x 130m size, 109mm outer diameter, 40mm diameter of central hole.
880050 20 rolls of adhesive thermal paper, 59mm x 57m size, 109mm outer diameter, 40mm diameter of central hole.
880034 24 rolls of 1000 white labels, 58x53mm size, 40mm diameter of central hole.
880035 32 rolls of 1000 white labels, 58x43mm size, 40mm diameter of central hole.
880036 24 rolls of 900 white labels, 58x60mm size, 40mm diameter of central hole.
880037 24 rolls of 750 white labels, 58x74mm size, 40mm diameter of central hole.

All the specifications and images can be subject to variations and upgrades without prior notice.
