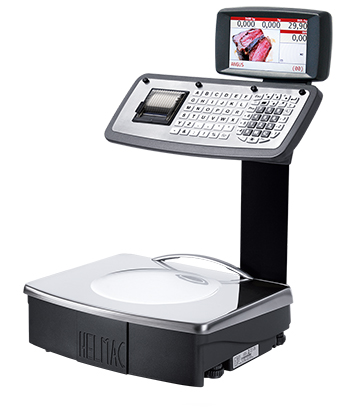

GPE SERIES "MK" RETAIL COUNTER SCALES WITH MECHANICAL KEYBOARD AND COLOR DISPLAY 7"


  GPE SERIES "MK" RETAIL COUNTER SCALES WITH MECHANICAL KEYBOARD AND COLOR DISPLAY 7"

INFORMATION
  • Available upon request
  • Approval:
I/O SECTIONS
  • 2 RS232 interfaces for connection to PC, modem, scanner, cash register.
  • RS485 interface for connection with up to n° 4 GPEMK scales in a local network.
Sturdy counter scales with high performance color display 7", perfect for all applications in the retail trade and shops. The mechanical keyboard guarantees the fast and easy typing by the operator.

FEATURES

  • TFT high definition color display for improve products sales throught beautiful images
  • Fast, accurate, mechanical, and waterproof keyboard, with 69 keys including 33 functional keys and 36 easily configurable for PLU's, TLU's and 6 additional operators.
  • Thermal printer speed of 80mm/sec for normal thermal paper or for Linerless adhesive with paper 57mm wide, and outer diameter max. 50mm.
    Print width of up to 48mm.
  • System for easily loading the paper.
  • DIE-CAST ALUMINIUM base, stainless steel and polymer structure.
  • Stainless steel plate, 370x310mm (LxW) size.
  • 230Vac power supply with long-lasting built-in rechargeable battery.

FUNCTIONS

  • Database of 7000 PLU's, 72 with direct access.
  • 50 PLU groups.
  • 999 ingredient lists.
  • 4 VAT rates.
  • 10 advertisement messages with 60 images .
  • Queue-system.
  • 8 payment modes.
  • 2 kinds of short and long term totals.
  • 6/12 operators.
  • 3 programmable password levels.
  • Single item.
  • PLU priority.
  • Weighing tare, operator tare, PLU's tare, pre-stored and configurable tare.
  • Reopening of the last tickets, discounts, rebates, cash management, customer management.
  • Management of logos and firmware with the HLL (Helmac Label Loader) software downloadable from the website.

Video

DOWNLOAD
Retail counter shop scales: VERSIONS
 CodeDescription
718110 Scale GPEMK Color 12/30kg capacity, 2/5g division, with stainless steel structure and 370x310mm plate, dual backlit LCD display on column, 69-key mechanical keyboard, and thermal printer.
Retail counter shop scales: COMMUNICATION INTERFACES (to be specified when ordering the scale)
 CodeDescription
810050 Ethernet interface kit for connecting the scales to the PC.
810055 Ethernet-USB interface kit for connecting the scales to the PC and in a network.
810180 Ethernet WIFI module to create a scale network and connect to PC.
842527 Micro Sd for Ethernet Board
810172 Ethernet WIFI module fitted with USB port, to create a scale network and connect to PC (max. 4 scales without access point, up to 8 scales with access point).
810061 WiFi antenna, 20cm long, to increase the strength of the communication signal between the scales.
Retail counter shop scales: OPTIONS (to be specified when ordering the scale)
 CodeDescription
810000 Stainless steel bowl-shaped plate with discharge outlet, dimensions 330 x 385 mm, height 45 mm, for scales with column.
700500 Painted metal cash drawer for coins and bills, size: 405x355x90mm, fitted with 4 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
700506 Stainless steel cash drawer for coins and bills, size: 425x410x110mm, fitted with 6 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
810170 Opening of cash register drawer.
810116 Connection for 12/24Vdc power supply for itinerant sales.
810232 Custom-made header ticket complete with logos. Note: the customisation is possible after an analysis of the Helmac technical staff.
847243 Power supply 24V, 3A per utilizzo della bilancia anche senza batterie (da verificare in base alla tipologia dell'etichetta)
Retail counter shop scales: CABLES
 CodeDescription
806002 Ethernet shielded cable 3 m long for connection between scales.
806005 Ethernet shielded cable 5 m long for connection between scales.
821235 Cable 2,5m long for connecting the scale to the PC.
841239 USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
Retail counter shop scales: ACCESSORIES
 CodeDescription
810145 Cover for the protection of the printer against water, dust and residues of weighed products.
810146 Package of 5 covers for the protection of the printer against water, dust and residues of weighed products.
810106 Bracket for mounting the Lynx cash register to the column of the scale.
880143 Plexiglas protection for scale plate.
Retail counter shop scales: EXPENDABLE MATERIALS
 CodeDescription
880042 72 rolls of Linerless thermal sticker paper, 55mm x 21m size, 49mm outer diameter, 13mm diameter central hole.
880043 100 rolls of thermal paper, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.

All the specifications and images can be subject to variations and upgrades without prior notice.
