Retail Scales





GPE SERIES "6" RETAIL HANGING SCALES


  GPE SERIES "6" RETAIL HANGING SCALES

INFORMATION
  • Available upon request
  • Approval:
INSTALLATION EXAMPLES

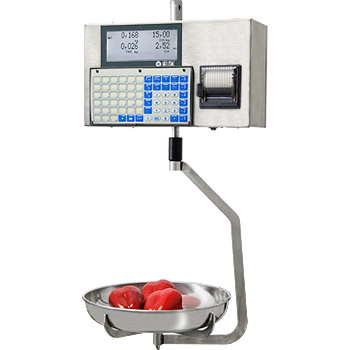

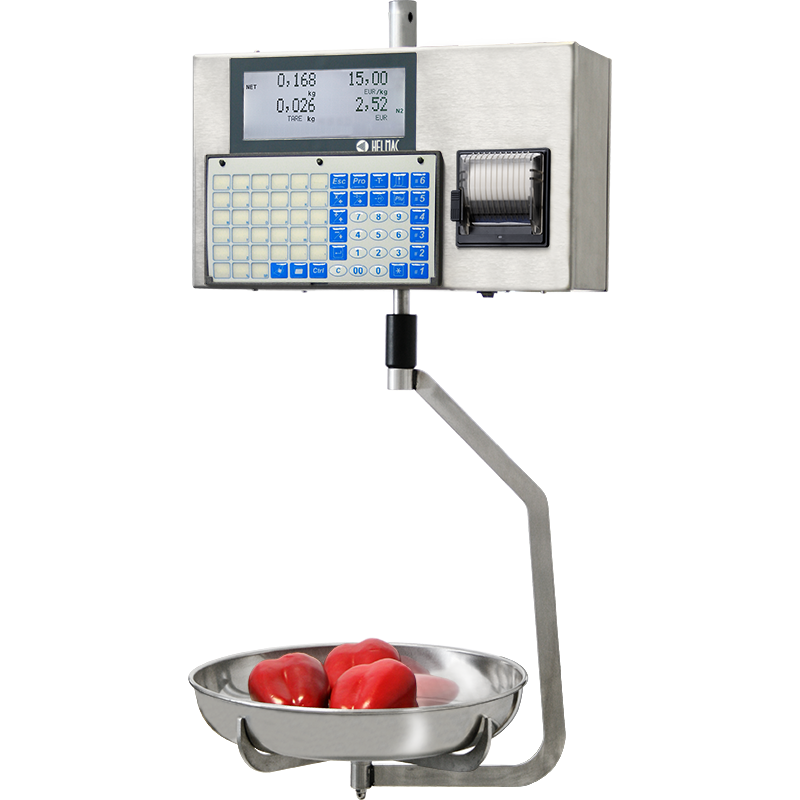

Stainless steel retail hanging scales, ideal instrument where water and salt make the work environment particularly aggressive.

MAIN FEATURES

  • Dual alphanumeric backlit white LCD display, on operator and client side.
    The backlight function can be removed.
  • Fast, accurate, and waterproof keyboard, with 66 keys including 33 functional keys and 33 easily configurable for PLU's, TLU's and 6 additional operators.
  • Thermal printer speed of 80 mm/sec for normal thermal paper or for Linerless adhesive with paper 57 mm wide, and outer diameter max. 50 mm.
    Print width of up to 48 mm.
  • System for easily loading the paper.
  • Stainless steel structure.
  • Large-sized plate in stainless steel.
  • Power 230 Vac, with AC/DC external adapter and built-in rechargeable battery.

FUNCTIONS

  • Database of 3000 PLU's, 66 with direct access.
  • 10 PLU groups.
  • 600 ingredient lists.
  • 4 VAT rates.
  • 10 advertisement messages.
  • Queue-system.
  • 8 programmable payment modes.
  • 2 kinds of short and long term totals
  • 6/12 operators.
  • 3 programmable password levels.
  • Single item.
  • PLU priority.
  • Weighing tare, operator tare, PLU's tare, pre-stored and configurable tare.
  • Reopening of the last tickets, discounts, rebates, cash management, customer management.
  • Management of logos and firmware with the HLL (Helmac Label Loader) software downloadable from the web site.

I/O SECTIONS

  • 2 RS232 interfaces for connection to: PC, modem, scanner, Helmac cash register.
  • RS485 for connection with up to n° 4 GPE scales in a local network.
DOWNLOAD
 CodeDescription
794550 GPE6 scale, 6/15kg capacity, 2/5g division, with stainless steel structure and large-sized plate, dual backlit LCD display, 66-key waterproof keyboard and thermal printer.
794750 GPE6 scale, 15 kg capacity, 5 g division, with stainless steel structure and large-sized plate, dual backlit LCD display, 66-key waterproof keyboard and thermal printer.
Stainless steel retail hanging scales: COMMUNICATION INTERFACES (to be specified when ordering the scale)
 CodeDescription
810050 Ethernet interface kit for connecting the scales to the PC.
810055 Ethernet-USB interface kit for connecting the scales to the PC and in a network.
810180 Ethernet WIFI module to create a scale network and connect to PC.
810174 Ethernet WIFI module fitted with USB port, to create a scale network and connect to PC (max.4 scales without access point, up to 8 scales with access point).
842527 Micro Sd for Ethernet Board
810061 WiFi antenna, 20cm long, to increase the strength of the communication signal between the scales.
Stainless steel retail hanging scales: OPTIONS (to be specified when ordering the scale)
 CodeDescription
846171 Bowl-shaped pan RQ4S fitted with support, for hanging scales.
846141 Polished round bottom plate fitted with support, for hanging scale.
848596 Kit for mounting the hanging scale to ceiling.
810232 Custom-made header ticket complete with logos. Note: the customisation is possible after an analysis of the Helmac technical staff.
847243 Power supply 24V, 3A per utilizzo della bilancia anche senza batterie (da verificare in base alla tipologia dell'etichetta)
Stainless steel retail hanging scales: CABLES
 CodeDescription
806002 Ethernet shielded cable 3 m long for connection between scales.
806005 Ethernet shielded cable 5 m long for connection between scales.
821235 Cable 2,5m long for connecting the scale to the PC.
841239 USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
Stainless steel retail hanging scales: ACCESSORIES
 CodeDescription
810145 Cover for the protection of the printer against water, dust and residues of weighed products.
810146 Package of 5 covers for the protection of the printer against water, dust and residues of weighed products.
Stainless steel retail hanging scales: EXPENDABLE MATERIALS
 CodeDescription
880043 100 rolls of thermal paper, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.
880042 72 rolls of Linerless thermal sticker paper, 55mm x 21m size, 49mm outer diameter, 13mm diameter central hole.

All the specifications and images can be subject to variations and upgrades without prior notice.
