Retail Scales





GPE SERIES "MIT" SCALES FOR SHOPS WITH COLUMN


  GPE SERIES "MIT" SCALES FOR SHOPS WITH COLUMN

INFORMATION
  • Available upon request
  • Approval:

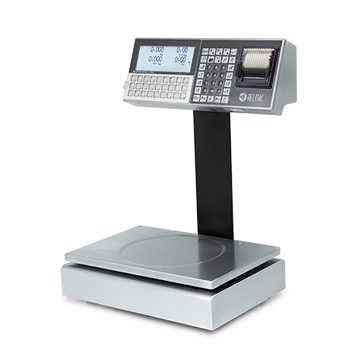

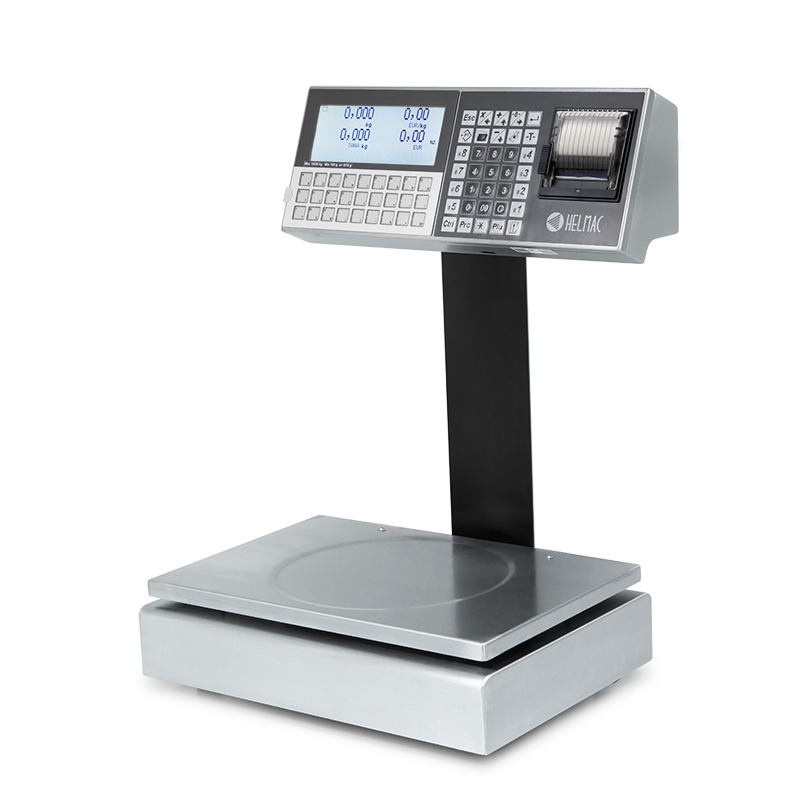

Stainless steel retail scales, perfect for use in shops and powered by battery. Load plate protected from impacts and display, keyboard and printer mounted on sturdy column.

FEATURES

  • Double display (operator and customer side) white backlit LCD, alphanumeric. Excludeable backlighting.
  • Double waterproof keyboard consisting of 27 PLU/functions membrane keys easily legible thanks to the special pocket.
  • Thermal printer 80mm/sec, suitable for normal thermal paper or self-adhesive Linerless paper with 57mm width and max external diameter 50mm.
    Print width up to 48mm.
  • Easyloading system, for easy paper loading. Logo printing function.

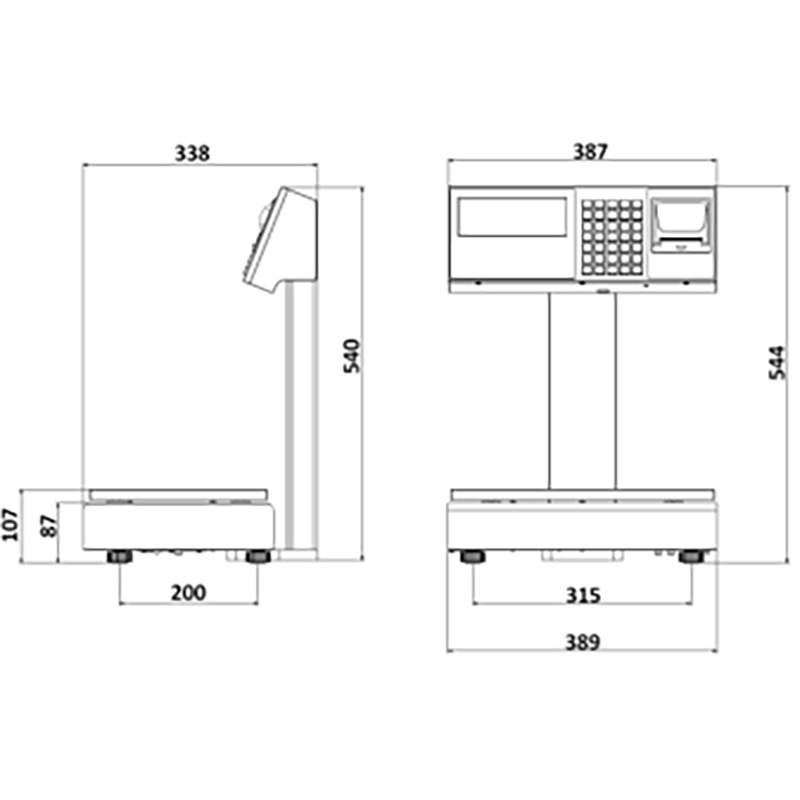

  • Stainless steel body, size 389x335x500mm (LxWxH).
  • Stainless steel plate 360x235mm (WxW).
  • 230Vac power supply with internal long-lasting rechargeable battery.

FUNCTIONS

  • Database of 3000 PLU's, 48 with direct access.
  • 10 PLU groups.
  • 600 ingredient lists.
  • 4 VAT rates.
  • 10 advertisement messages.
  • Queue-system.
  • 8 payment modes.
  • 2 kinds of short and long term totals.
  • 4/8 operators.
  • 3 programmable password levels.
  • Operation mode: PLU priority, single item, multi-operator tickets.
  • Weighing tare, operator tare, PLU tare, pre-stored and configurable tare.
  • Reopening of the last operator ticket, discounts, rebates, cash management, customer management.

I/O SECTIONS

  • 2 RS232 interfaces for connection to PC, modem, scanner, Helmac cash register.
  • RS485 interface for connection with up to 4 scales in a local network.
DOWNLOAD
Electronic retail scales for itinerant sales: VERSIONS
 CodeDescription
776120 GPEMIT scale, 12/30 kg capacity, 2/5g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, double keyboard membrane/mechanical 62 Keys and thermal printer mounted on column.
776320 GPEMIT scale, 15/30 kg capacity, 5/10 g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, double keyboard membrane/mechanical 62 Keys and thermal printer mounted on column.
776520 GPEMIT scale, 6/15 kg capacity, 2/5g division, with stainless steel structure and 360x235mm plate, dual backlit LCD display, double keyboard membrane/mechanical 62 Keys and thermal printer mounted on column.
Calibration options
 CodeDescription
881018 Version 3/6 kg, division 1/2g
Electronic retail scales for itinerant sales: COMMUNICATION INTERFACES (to be specified when ordering the scale)
 CodeDescription
810072 Ethernet interface kit for connecting the scales to the PC.
810073 Ethernet-USB interface kit for connecting the scales to the PC and in a network.
810183 Ethernet WIFI module to create a scale network and connect to PC.
810184 Ethernet WIFI module fitted with USB port, to create a scale network and connect to PC (max.4 scales without access point, up to 8 scales with access point).
842527 Micro Sd for image management via Ethernet (and taxation if applicable)
Electronic retail scales for itinerant sales: OPTIONS (to be specified when ordering the scale)
 CodeDescription
810010 Stainless steel bowl-shaped plate ("svizzera" type), dimensions 310 x 410 mm, height 50 mm.
810116 Connection for 12/24Vdc power supply for itinerant sales.
700500 Painted metal cash drawer for coins and bills, size: 405x355x90mm, fitted with 4 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
700506 Stainless steel cash drawer for coins and bills, size: 425x410x110mm, fitted with 6 compartments for bills and 8 compartments for coins; electronically managed through the keyboard.
810170 Opening of cash register drawer.
810232 Custom-made header ticket complete with logos. Note: the customisation is possible after an analysis of the Helmac technical staff.
847243 Power supply 24V, 3A for use of the scale even without batteries (to be checked according to the type of label)
810171 Predisposition for connection at external platform
Electronic retail scales for itinerant sales: CABLES
 CodeDescription
806002 Ethernet shielded cable 3 m long for connection between scales.
806005 Ethernet shielded cable 5 m long for connection between scales.
821235 Cable 2,5m long for connecting the scale to the PC.
841239 USB-RS232 cable 1,8 m long for the connection between the scale and the PC, fitted with USB connector on PC side and RJ connector on scale side.
880155 Anschlusskit an externes Etikettiergerät
Electronic retail scales for itinerant sales: ACCESSORIES
 CodeDescription
810142 Stainless stess cover for printer protection against water, dust and residues of weighed products.
810143 5 pcs package of 810142 cover. Stainless stess cover for printer protection against water, dust and residues of weighed products.
810197 Advertising holder in transparent Plexiglas, 2 mm thick, 148 x 210 mm size.
880210 Laser barcode scanner
880207 Barcode scanner 2d
Electronic retail scales for itinerant sales: EXPENDABLE MATERIALS
 CodeDescription
880042 72 rolls of Linerless thermal sticker paper, 55mm x 21m size, 49mm outer diameter, 12mm diameter central hole.
880043 100 rolls of thermal paper, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.
880079 100 rolls of thermal paper, with internal thermal side, 57mm x 30m size, 51mm outer diameter, 12mm diameter of central hole.

All the specifications and images can be subject to variations and upgrades without prior notice.
